Summary:
The mill is intended for manufacturing of round pipe of Φ12mm-Φ76mm with thickness of 0.5mm–2.5 mm from cold-rolled and hot-rolled coil strip by means of unclosed tubular blank with its subsequent welding into tube, edge heating by means of solid state high-frequency welder,longitudinal seam welding in rolls of tube welding machine, cooling, further sizing or shaping and on-stream cutting of endless tube in measured lengths. Finished product will be of round, square or rectangular pipe.

Main equipment:

Decoiler,main forming machine,hydraulic cutting,electric system(plc),hydraulic system,product stand.

Technical parameters

inner tight decoiler

main forming machine

cutting system

A. hydraulic cutter

B. Blade and mould material:Cr12 steel with quenched treated 60-62°

C. Cutting system advanced hydraulic drive,after automatic cutting after forming.

control system

A. PLC: taida form Taiwan

B. Coder:from south korea

hydraulic system

A. advanced hydraulic system from taiwan

B. Power:3kw

Spare Parts

1) Easy damaged parts: conk 2 pcs, fuse-link 4 pcs

2) Rubber mat 1 pcs;

3) Bolt spanner 1 pcs

Welded Down Pipe Roll Forming Machine

10m/min Down Pipe Roll Forming Machine

Cr12 gutter rolling machine

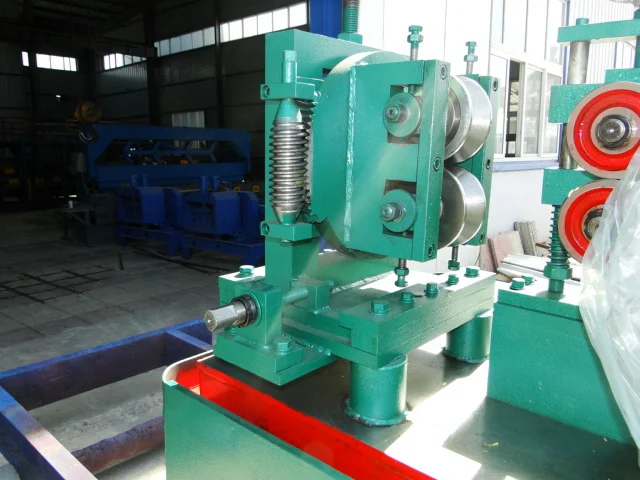

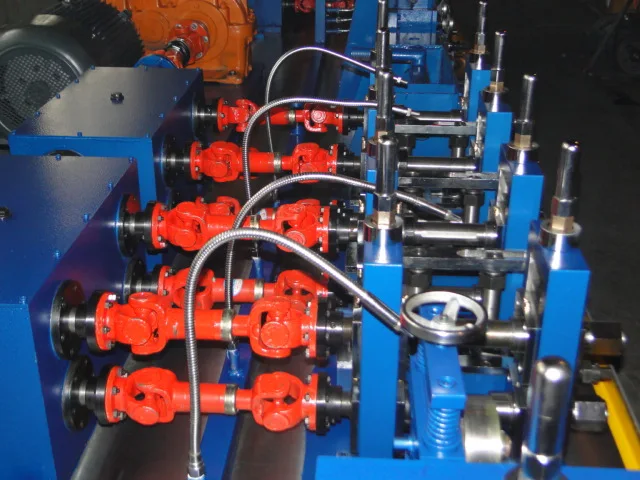

Welded Down Pipe Roll Forming Machine 10m/min Cr12 Cutting Images
